Python

Flask Recipe – RESTful CRUD using sqlalchemy

RESTful apps are a thing these days. When your application’s userbase gets quite large and the client could vary from a laptop to an android device to an iOS device, it pays to keep the backend code separate and use the server only for making RESTful calls using HTTP methods that pertain to basic OLTP transactions: SELECT, INSERT, UPDATE and DELETE.

Popular third-party apps like Firebase essentially provide you this same thing – A REST based front to a database that could be accessed online using simple HTTP methods. But in this tutorial, we will learn how to create such a backend ourselves using Python’s flaskframework and sqlalchemy, a light-weight but powerful ORM library that can access ANY database using its flexible sql expression language.

Rather than using firebase, if you develop your own implementation of your back-end, not only will it help you learn and become a better programmer, but also give you a flexible solution that you can scale and change as per your needs. Its also much cheaper to host your own solution on Amazon EC2 (or Lambda) compared to other costlier alternatives.

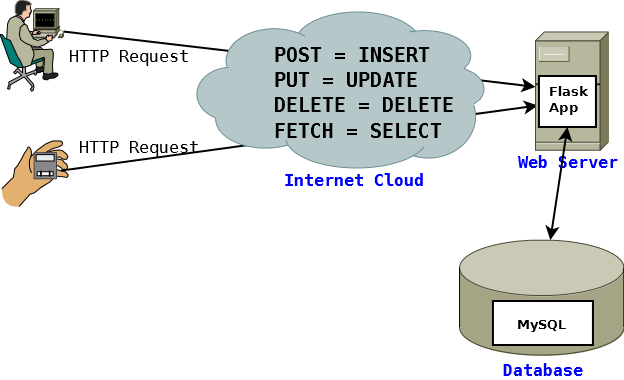

Contrary to popular thinking, its not very difficult to create a database agnostic backend such as the one represented in the above diagram. With a minimal and powerful web framework such as flask, combined with the power of sqlalchemy, you can get up and running within minutes. In fact, I’ve developed a prototype version called Tiddly that essentially does the same thing as above using just 172 lines of Python code. You can refer to that github repository for reference as we proceed through this tutorial, or directly start using it. But make sure you install the following dependencies before running it:

pip install flask
pip install sqlalchemy

The first step towards creating the app is creating your database models. Once you’ve done the brainstorming and decided what tables and fields you are going to need, you can create a models.py source file with something like this:

import sqlalchemy
from sqlalchemy import create_engine
from sqlalchemy import Column, String, Integer
from sqlalchemy.orm import sessionmaker
from sqlalchemy.ext.declarative import declarative_base

#TODO: Change as needed:
engine = create_engine("sqlite:///tiddly.db", echo=True)
Base = declarative_base()

Session = sessionmaker(bind=engine)
dbsession = Session()

class User(Base):
	__tablename__ = "user"
	id = Column(Integer, primary_key=True)
	email = Column(String)
	password = Column(String)
	name = Column(String)
	def repr(self):
		return "<User(name=%s, email=%s, )>" % (name, email)

class Dual(Base):
	__tablename__ = "dual"
	id = Column(Integer, primary_key=True)
	text = Column(String)
	def repr(self):
		return "<Dual(id=%s, text=%s, )>" % (id, text)

I’m using sqlite database for example here, but you can use any one of your choice. A usertable is a pretty basic one in almost every app as it is used for authentication. Apart from that, I’ve also created a dual table just to play around with.

After that, create the second file app.py that contains our application code. Define the following import statements along with your models as they will come very handy:

import flask
from flask import request, jsonify, session
import sqlalchemy
from sqlalchemy import inspect, desc
import json
import models
from models import engine, dbsession

Now, the only thing that remains to be done is the plumbing the HTTP methods to their respective database operations. You can either create a separate view function for each one or use a single one for all of them. In this example, I’m using a single function for simplicity.

@app.route("/<table_name>", methods=["POST", "PUT", "DELETE", "FETCH"])
def fetch(table_name):
	print("verb: %s, tablename: %s" % (request.method, table_name))
	if request.method == "POST" or request.method == "PUT":
		data = request.get_json(force=True)
		print("data:", data)
		try:
			TableClass = models.get_class_by_tablename(table_name)
			if TableClass == None: raise Exception("Table not found: %s" % table_name)
			if request.method == "POST": #insert data
				object = TableClass(**data)
				dbsession.add(object)
				dbsession.commit()
			else: #update data
				object = dbsession.query(TableClass).filter_by(**{"id":id}).first()
				if object == None: raise Exception("No data found.")
				#object.update(**data)
				for key in data.keys():
					setattr(object, key, data[key])
				#dbsession.add(object)
				dbsession.commit()
			return jsonify({
				"status": "success",
				"id": object.id,
				})
		except Exception as e:
			return jsonify({
				"status": "error",
				"error": str(e),
				})
	elif request.method == "DELETE":
		try:
			TableClass = models.get_class_by_tablename(table_name)
			if TableClass == None: raise Exception("Table not found: %s" % table_name)
			object = dbsession.query(TableClass).filter_by(**{"id":id}).first()
			if object == None: raise Exception("No data found.")
			dbsession.delete(object)
			dbsession.commit()
			return jsonify({
				"status": "success",
				"id": object.id,
				})
		except Exception as e:
			return jsonify({
				"status": "error",
				"error": str(e),
				})
	elif request.method == "FETCH":
		try:
			data = request.get_json(force=True)
			data = json.loads(data)
			print("data: ", data)
			print("data-type: ", type(data))
			TableClass = models.get_class_by_tablename(table_name)
			if TableClass == None: raise Exception("Table not found: %s" % table_name)

			query = dbsession.query(TableClass).filter_by(**data['where'])
			if 'orderby' in data:
				for cname in data['orderby'].split(','):
					reverse = False
					if cname.endswith(' desc'):
						reverse = True
						cname = cname[:-5]
					elif cname.endswith(' asc'):
						cname = cname[:-4]
					print("cname: ", cname)
					column = getattr(TableClass, cname)
					if reverse: column = desc(column)
					query = query.order_by(column)
			if 'limit' in data:
				query = query.limit(data['limit'])
				query = query.offset(data['offset'])
			object = query.all()
			data = [object_as_dict(t) for t in object]
			return jsonify({
				"status": "success",
				"data": data
				})
		except Exception as e:
			return jsonify({
				"status": "error",
				"error": str(e),
				})
	else:
		return jsonify({
			"status": "error", "error": "Unrecognized verb.",
			})

I’ve used a non-standard HTTP method, FETCH for the SELECT action. That’s because if you use the GET method, you aren’t allowed to actually post data (as in actual posting, don’t confuse with POST method) as per the HTTP specification. The other methods, viz POSTPUTand DELETE are self-apparent and they stand for INSERTUPDATE and DELETE actions respectively.

As you can see, the app makes good use of the sql expression language of sqlalchemy to dynamically query any kind of data, not only using the usual where clause, but also using ordering and pagination (limit/offset) parameters:

if 'orderby' in data:
	for cname in data['orderby'].split(','):
		reverse = False
		if cname.endswith(' desc'):
			reverse = True
			cname = cname[:-5]
		elif cname.endswith(' asc'):
			cname = cname[:-4]
		print("cname: ", cname)
		column = getattr(TableClass, cname)
		if reverse: column = desc(column)
		query = query.order_by(column)
if 'limit' in data:
	query = query.limit(data['limit'])
	query = query.offset(data['offset'])

The front-end sends whatever it needs to the back-end using JSON format and the result is also in JSON. For example, the following JSON when posted to /user endpoint using FETCHmethod, returns the record from user table where name field matches admin and orders the results by email in descending order.

{"where": {"name":"admin"}, "orderby": "email desc"}

Adding the limit and offset clauses to the same can help the front-end with pagination.

{"where": {"name":"admin"}, "orderby": "email desc", "limit":2, "offset": 2}

Its also pretty trivial to implement user authentication with this design. I haven’t done it in this example for simplicity, but you can find it in the github code.

All code in this tutorial and on github is MIT licensed and free to use. So, enjoy coding, build your own RESTful CRUD app, and let me know how it goes via comments below!

Reference: Flask Recipe – RESTful CRUD using sqlalchemy from our WCG partner Prahlad Yeri at the Prahlad Yeri blog.
