PyQt5 Drawing Tutorial (Painting APIs)

In this tutorial, we will learn how to draw vector graphics in PyQt5. In Python, the PyQt5 module is the easiest module you can use for drawing purposes as you will see.

Before getting started, let’s create a window using PyQt5 where we will be drawing our graphics.

Create a PyQt5 window

To create the window, import the following modules:

1
2
3
4
5
from PyQt5 import QtGui

from PyQt5.QtWidgets import QApplication, QMainWindow

import sys

Now create the Window class which provides a window for our application where we can have a menu bar, status bar, graphics, etc.

Inside this class, we will have two methods; the first method is a constructor which is automatically called when the object of the class is created.

The second method called InitWindow, it sets the parameters we defined in our constructor, for example, the title of our application window, length, and width etc.

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
class Window(QMainWindow):

    def __init__(self):

        super().__init__()

        self.title = "PyQt5 Drawing Tutorial"

        self.top= 150

        self.left= 150

        self.width = 500

        self.height = 500

        self.InitWindow()

    def InitWindow(self):

        self.setWindowTitle(self.title)

        self.setGeometry(self.top, self.left, self.width, self.height)

        self.show()

In the constructor, the parameters are initialized and in the InitWindow() method, the parameters are applied to the window using setGeometry() function.

Now the main steps: Create an instance of QApplication, and object of Window class then execute the window.

1
2
3
4
5
App = QApplication(sys.argv)

window = Window()

sys.exit(App.exec())

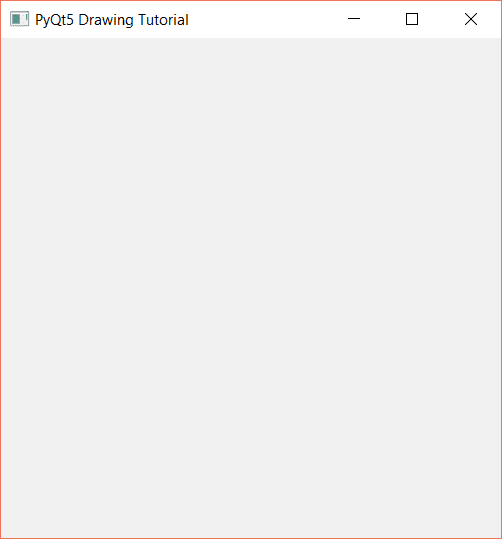

Our window is now ready and we can create graphics easily:

PyQt5 Drawing Tutorial

Draw a circle

To draw graphics, import the following modules:

1
2
3
from PyQt5.QtGui import QPainter, QBrush, QPen

from PyQt5.QtCore import Qt

The QPainter provides various functions to draw the basic shapes. For example, lines, rectangles etc. The QBrush modules provide colors, textures, etc. for a shape. The QPen defines the working of QPainter that is how should QPainter design or style a shape.

  1. The first step is to define the method where all painting work will be done, the method is paintEvent():

def paintEvent(self, event):

  1. Create a painter object:

painter = QPainter(self)

  1. Now set the QPen for the painter and assign the color and style to the line for the circle:

painter.setPen(QPen(Qt.green,  8, Qt.DashLine))

The value 8 is the width of the circle line.

  1. Draw the circle using drawEllipse(x_axis, y_axis, width, height) The drawEllipse() method is called using painter object we created in step 2. Define the x and y axis where the circle will be placed in the window and the size (height and width).

painter.drawEllipse(40, 40, 400, 400)

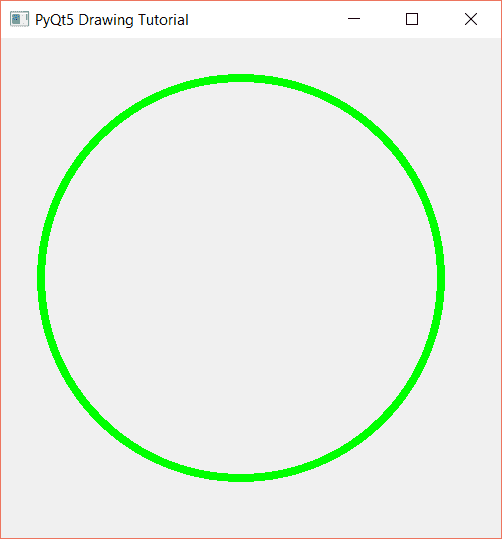

The output will be as follows:

PyQt5 Drawing Tutorial

In this example, we have used the DashLine as line style, we can also use SolidLine to create a solid lined continuous circle as follows:

painter.setPen(QPen(Qt.green,  8, Qt.SolidLine))

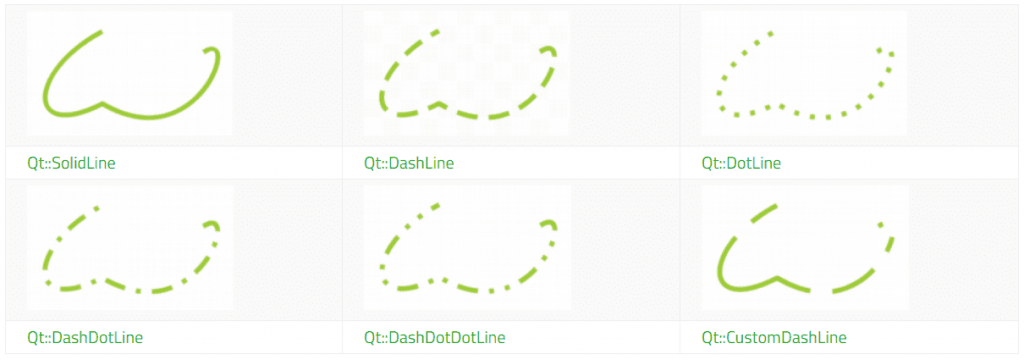

We can have the following line styles:

PyQt5 Drawing Tutorial

This image is extracted from the QPen Official Documentation.

Draw a Filled Circle

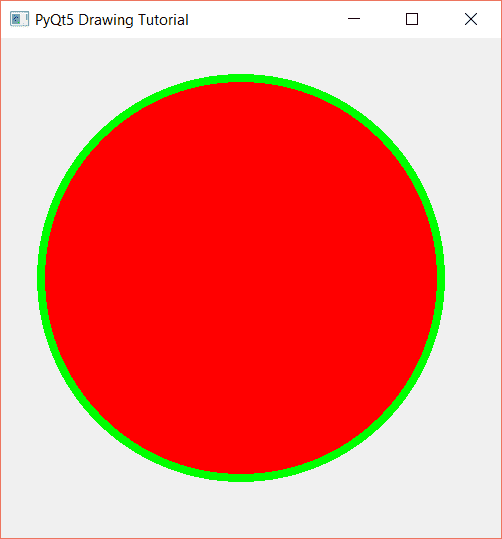

You can draw a filled circle by using the QBrush. Set the color of the pattern and pattern style.

  1. Set the brush as we set the pen in the last section using the painter object:

painter.setBrush(QBrush(Qt.red, Qt.SolidPattern))

PyQt5 Drawing Tutorial

The entire painterEvent function will be like this:

1
2
3
4
5
6
7
8
9
def paintEvent(self, event):

        painter = QPainter(self)

        painter.setPen(QPen(Qt.green,  8, Qt.SolidLine))

        painter.setBrush(QBrush(Qt.red, Qt.SolidPattern))

        painter.drawEllipse(40, 40, 400, 400)

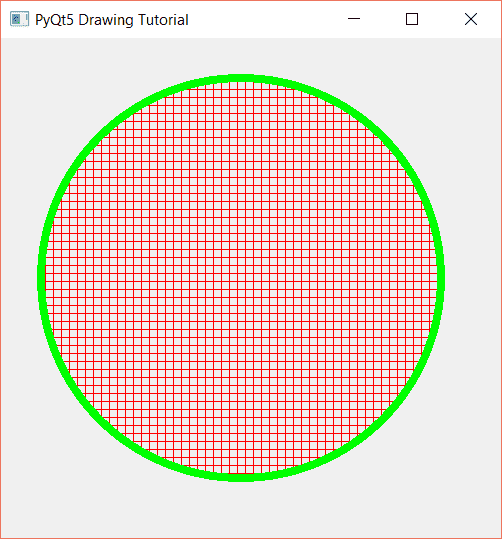

There are many other patterns that we can use for example the cross pattern:

painter.setBrush(QBrush(Qt.red, Qt.CrossPattern))

PyQt5 Drawing Tutorial

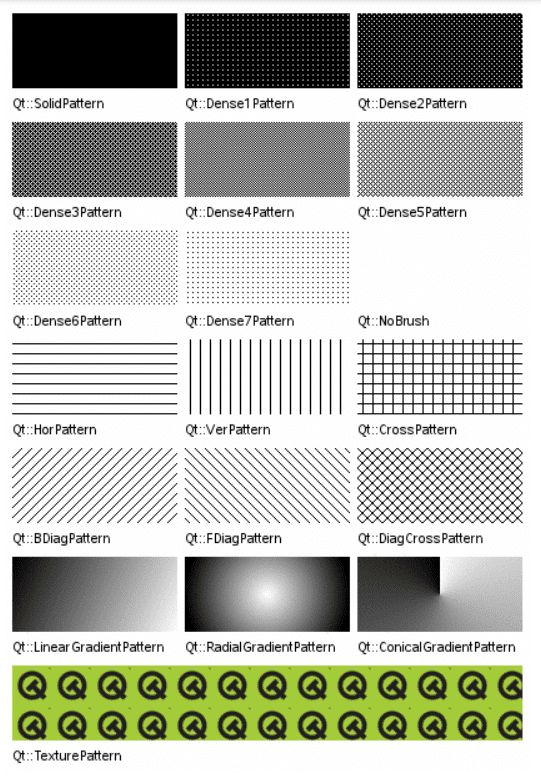

You can have the following patterns to fill in the circle or any other shape:

PyQt5 Drawing Tutorial

This image is extracted from the QBrush Official Document.

Draw Half Circle

To create a half circle, we will be using the drawArc() method. Follow the steps below:

  1. Create a painter object:

painter = QPainter()

  1. Now activate the painter by using the begin() method:

painter.begin(self)

  1. Now use the setRenderHint() method which returns the flag specifying the rendering hints set for the painter object.

painter.setRenderHint(QPainter.Antialiasing)

  1. Set the Pen for the arc:

painter.setPen(QtCore.Qt.green)

  1. Set the brush:

painter.setBrush(QtCore.Qt.white)

  1. Finally, draw the arc:

painter.drawArc(100, 70, 300, 300, 0 * 16, 180 * 16)

The first two parameters are the x and y axis respectively. Then we have the width and size of the arc, then the start angle. In the end, we have defined the span angle.

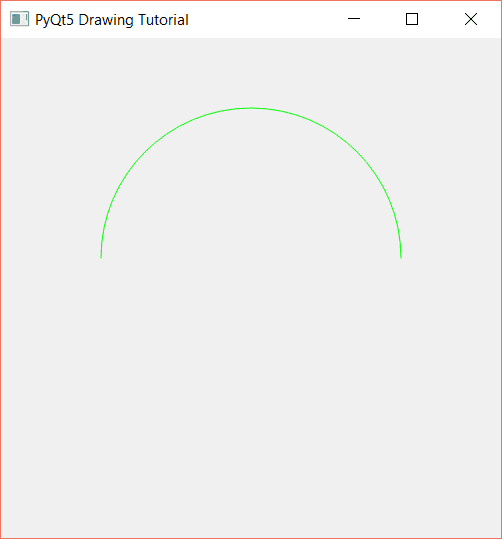

The result will be like this:

PyQt5 Drawing Tutorial

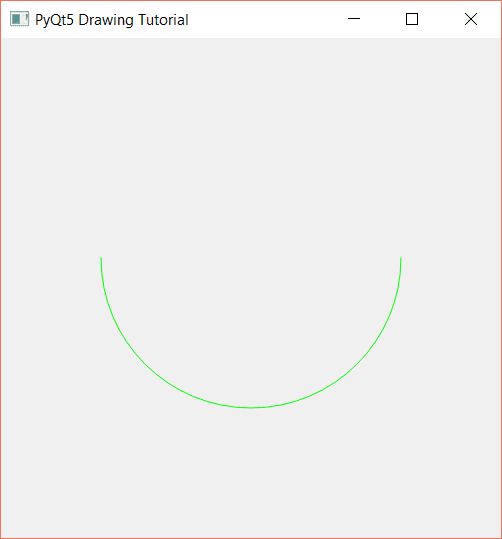

You can create a half circle upside down by changing the 180 degrees to -180 degrees:

painter.drawArc(100, 70, 300, 300, 0 * 16, -180 * 16)

PyQt5 Drawing Tutorial

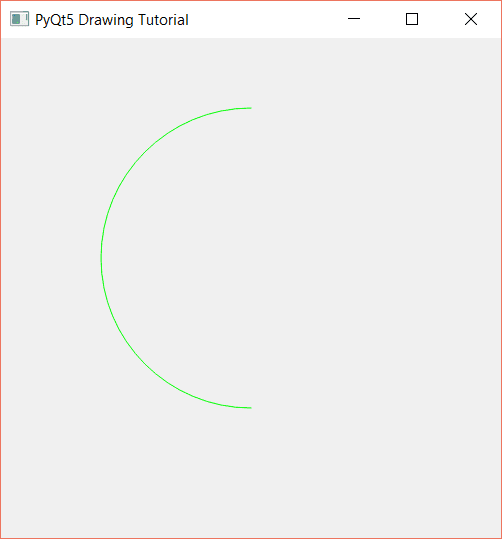

To create a vertical half circle:

painter.drawArc(100, 70, 300, 300, 90 * 16, 180 * 16)

PyQt5 Drawing Tutorial

Draw a Line

In this section, you will learn to draw a line. A line can be drawn by using the drawLine() function.

The drawLine() function draws a line from point a to point b. Follow the steps below:

  1. Create a painter object:

painter = QPainter()

  1. Now activate the painter by using the begin() method:

painter.begin(self)

  1. Now use the setRenderHint() method which returns the flag specifying the rendering hints set for the painter object.

painter.setRenderHint(QPainter.Antialiasing)

  1. Set the Pen for the line:

painter.setPen(QtCore.Qt.red)

  1. Set the brush:

painter.setBrush(QtCore.Qt.white)

  1. Finally, draw the line:

painter.drawLine(0, 0, 200, 200)

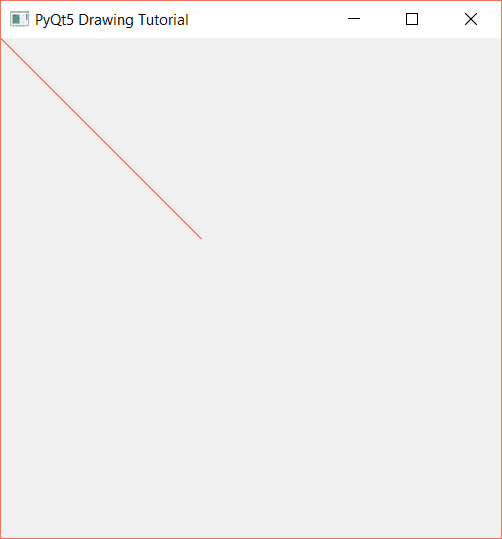

The result will be like this:

PyQt5 Drawing Tutorial

Draw Horizontal Line

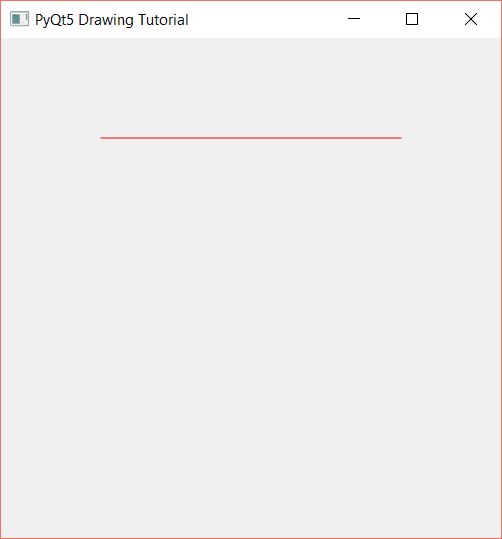

You can draw a horizontal line by using the drawLine() method. Consider the following code:

01
02
03
04
05
06
07
08
09
10
11
12
13
def paintEvent(self, event):

        painter = QPainter()

        painter.begin(self)

        painter.setRenderHint(QPainter.Antialiasing)

        painter.setPen(QtCore.Qt.red)

        painter.setBrush(QtCore.Qt.white)

        painter.drawLine(400, 100, 100, 100)

The code is the same as we used in the last section but you have to organize the points in the drawLine() function to get a horizontal line. This will generate the following result:

PyQt5 Drawing Tutorial

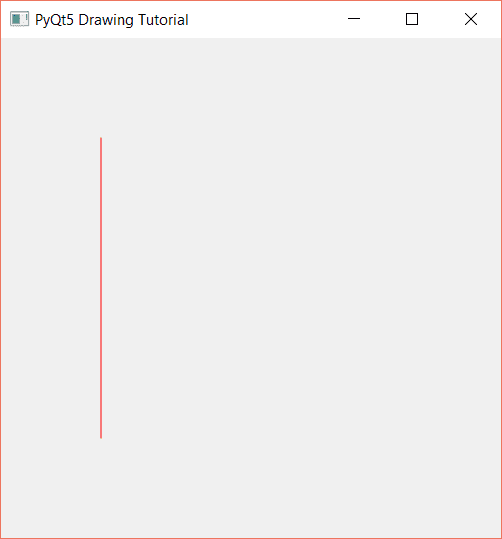

Similarly, we can create a vertical line by using the following points in the drawLine() function:

painter.drawLine(100, 100, 100, 400)

The result will be like this:

PyQt5 Drawing Tutorial

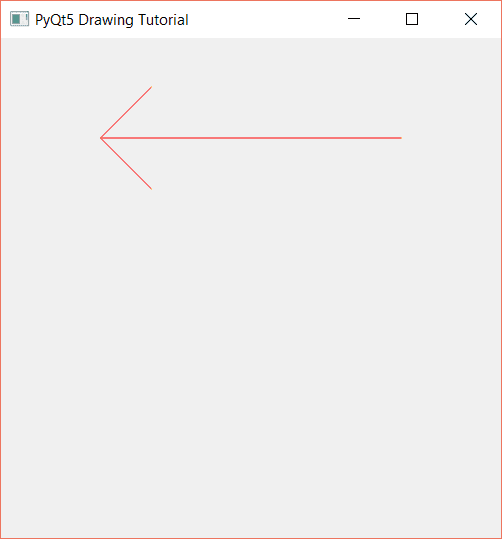

Draw an arrow

To draw an arrow, one will be a horizontal line and the remaining two lines for the head of the arrow. These lines will be drawn using the drawLine() function. Consider the code below:

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
def paintEvent(self, event):

        painter = QPainter()

        painter.begin(self)

        painter.setRenderHint(QPainter.Antialiasing)

        painter.setPen(QtCore.Qt.red)

        painter.setBrush(QtCore.Qt.white)

        painter.drawLine(400, 100, 100, 100)

        painter.drawLine(150, 150, 100, 100)

        painter.drawLine(150, 50, 100, 100)

The first drawLine() function is for the horizontal line, the second function creates the lower part of the arrow head and the third function creates the upper part of the arrow head.

PyQt5 Drawing Tutorial

Draw an arc

You can draw an arc using the drawArc() method. The syntax of drawArc() function is as follows:

drawArc(x_axis, y_axis, width, length, startAngle, spanAngle)

In the following example, we will be creating an arc from 0 degrees to 90 degrees:

01
02
03
04
05
06
07
08
09
10
11
12
13
def paintEvent(self, event):

        painter = QPainter()

        painter.begin(self)

        painter.setRenderHint(QPainter.Antialiasing)

        painter.setPen(QtCore.Qt.red)

        painter.setBrush(QtCore.Qt.white)

        painter.drawArc(100, 70, 300, 300, 0 * 16, 90 * 16)

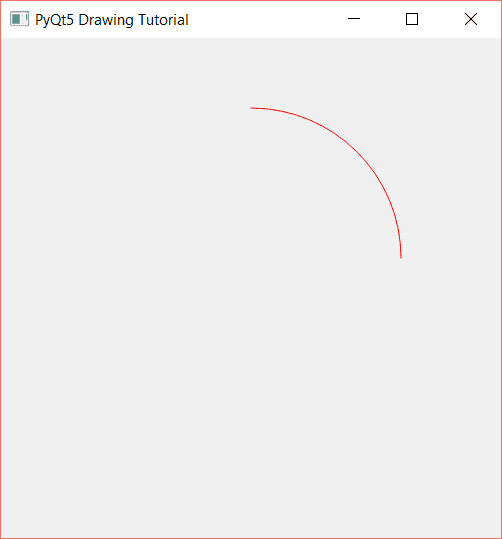

This will create an arc like the following:

PyQt5 Drawing Tutorial

Draw a curve

To draw a curve, you should use the QPainterPath module.

First of all, import the module:

from PyQt5.QtGui import QPainterPath

Now create a QPainter and a QPainterPath object inside the paintEvent() method:

1
2
3
painter = QPainter()

path = QPainterPath()

Then repeat the old steps of activating the painter, rendering hints for painter objects, and setting the pen and brush:

1
2
3
4
5
6
7
painter.begin(self)

painter.setRenderHint(QPainter.Antialiasing)

painter.setPen(QtCore.Qt.red)

painter.setBrush(QtCore.Qt.red)

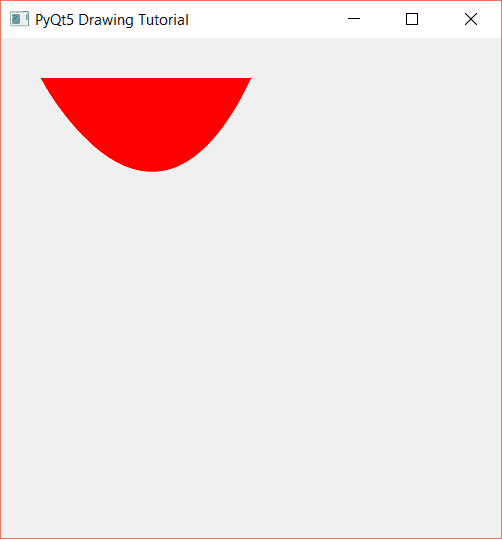

Then use the moveTo() function of the QPainterPath module to move to x and y axis in the window:

path.moveTo(40, 40)

Then use the cubicTo() of QPainterPath function which creates a curve between the current position and the end point (x, y).

path.cubicTo(40, 40, 150, 250, 250, 40)

Finally, use the drawPath() method and pass the path object to draw the curve.

The output will be like this:

PyQt5 Drawing Tutorial

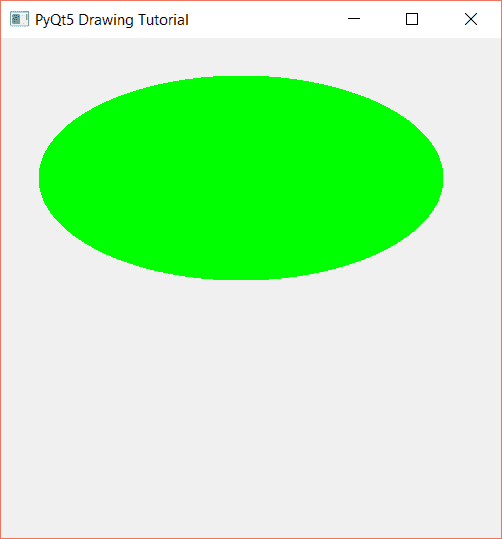

Draw an Ellipse

You can draw an ellipse using the drawEllipse() function like we did when drawing the circle. Just change the points accordingly and you will get the ellipse. Consider the following code:

1
2
3
4
5
6
7
8
9
def paintEvent(self, event):

        painter = QPainter(self)

        painter.setPen(QPen(Qt.green,  5, Qt.SolidLine))

        painter.setBrush(QBrush(Qt.green, Qt.SolidPattern))

        painter.drawEllipse(40, 40, 400, 200)
PyQt5 Drawing Tutorial

Draw a rectangle

To draw a rectangle we will be using the drawRect() method of QPainter module.

First of all, create the QPainter object in the paintEvent function:

1
2
3
4
5
6
7
def paintEvent(self, event):

        painter = QPainter(self)

        painter.setPen(QPen(Qt.black,  5, Qt.SolidLine))

        painter.drawRect(40, 40, 400, 200)

After the painter object, we used the setPen() method to set the color of the rectangle and the line style which is a solid line in our example.

Then just use the drawRect() method to draw the rectangle on the window. The above code will generate the following result:

PyQt5 Drawing Tutorial

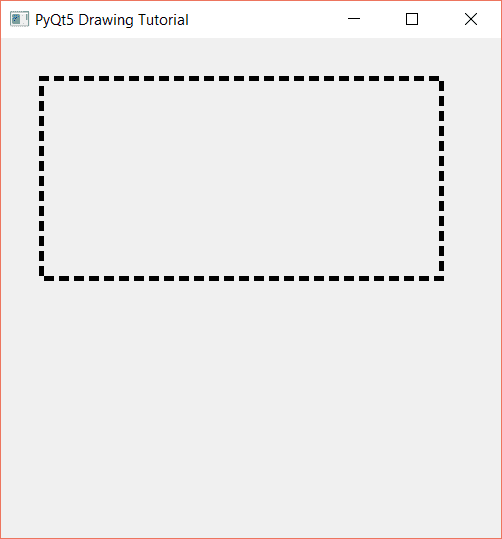

We can use other line styles, for example, DotLine which will be as follows:

painter.setPen(QPen(Qt.black,  5, Qt.DotLine))

PyQt5 Drawing Tutorial

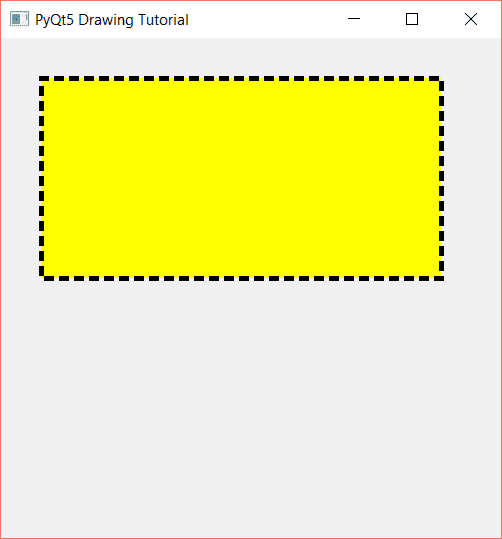

Draw a filled Rectangle

You can draw a filled rectangle by using the setBrush() function as follows:

1
2
3
4
5
6
7
8
9
def paintEvent(self, event):

        painter = QPainter(self)

        painter.setPen(QPen(Qt.black,  5, Qt.DotLine))

        painter.setBrush(QBrush(Qt.yellow, Qt.SolidPattern))

        painter.drawRect(40, 40, 400, 200)

The output will be as follows:

PyQt5 Drawing Tutorial

Draw a Triangle

To draw a triangle, you can use the lineTo() function of the QPainterPath module.

Consider the code below:

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
def paintEvent(self, event):

        painter = QPainter()

        path = QPainterPath()

        painter.begin(self)

        painter.setRenderHint(QPainter.Antialiasing)

        painter.setPen(QtCore.Qt.blue)

        path.lineTo(160, 400)

        path.lineTo(350, 100)

        path.lineTo(10, 25)

        painter.drawPath(path)

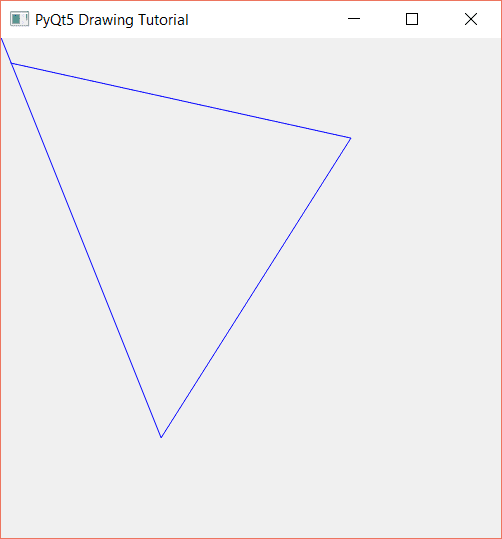

In the above code, we create objects of the respective classes/ modules. Then activate the painter and render the hints. Then set the pen (pen color).

At last, we use three lineTo() functions on different points to create three lines so that they are joined together as below:

PyQt5 Drawing Tutorial

Draw a filled Triangle

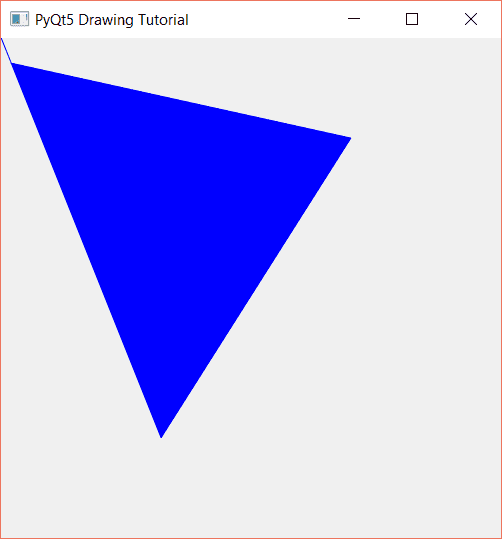

You can use the setBrush() method to draw a filled triangle as follows:

painter.setBrush(QtCore.Qt.blue)

The output will be like the following:

PyQt5 Drawing Tutorial

Draw a Gradient

We will be using the LinearGradient and for this, we will import the QLinearGradient module.

01
02
03
04
05
06
07
08
09
10
11
12
13
from PyQt5.QtGui import QLinearGradient

    def paintEvent(self, event):

        painter = QPainter()

        painter.setPen(QPen(Qt.black,  5, Qt.SolidLine))

       grad = QLinearGradient(80, 40, 30, 10)

        painter.setBrush(QBrush(grad))

        painter.drawRect(10, 10, 200, 200)

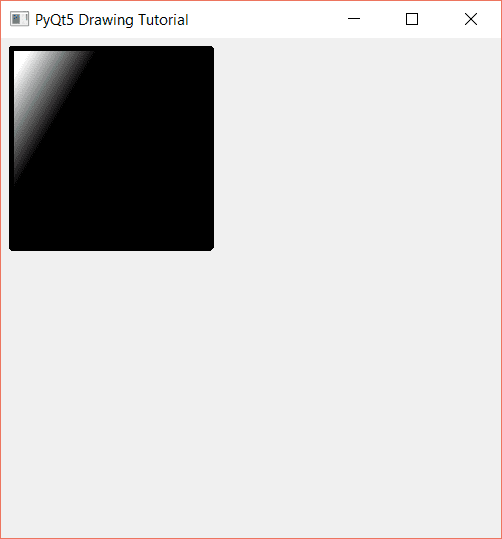

We have created a gradient object and passed the values to the QLinearGradient module. Next, we have passed values for the color to the QLinearGradient module and at the end, we set our brush with the gradient object.

The output will be like this:

PyQt5 Drawing Tutorial

Draw a Polygon

To draw a polygon, you can use the QPolygon method of QPolygon module. First, you have to import the QPoint from QtCore and QPolygon from QtGui as in the code below:

1
2
3
from PyQt5.QtGui import QPolygon

from PyQt5.QtCore import QPoint

In the code below, we declared an array of points which is passed to the QPolygon() method and then used the drawPolygon() method to draw a polygon.

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
def paintEvent(self, event):

        painter = QPainter()

        painter.setPen(QPen(Qt.black,  5, Qt.SolidLine))

        painter.setBrush(QBrush(Qt.black, Qt.SolidPattern))

        points = [

            QPoint(10,10),

            QPoint(10,100),

            QPoint(100,10),

            QPoint(100,100)

            ]

        poly = QPolygon(points)

        painter.drawPolygon(poly)

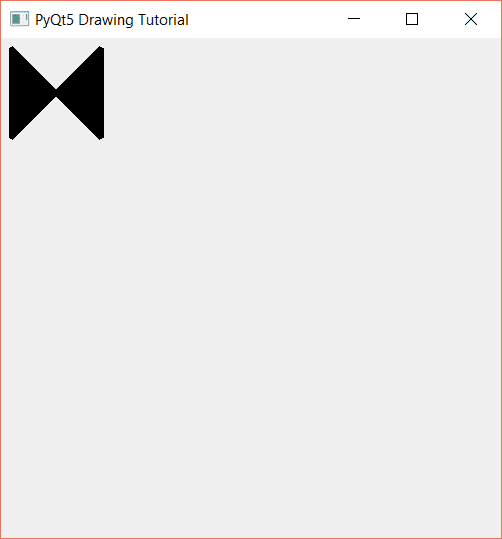

The output is as below:

PyQt5 Drawing Tutorial

Draw on Image

For this, we have imported everything from the QtWidgets, QtGui and QtCore modules as below:

1
2
3
4
5
from PyQt5.QtWidgets import *

from PyQt5.QtGui import *

from PyQt5.QtCore import *

Now the paintEvent method:

  • Create a QPainter object.
  • Then to import the image we have created an object of the QPixmap and passed the link to the image. Our image looks like this:
  • Now we have to display the image on the window, we used the drawPixmap().
  • Set the pen (the line color and line style for rectangle).
  • Draw the rectangle using drawLine() and it will be drawn on top of the image.
01
02
03
04
05
06
07
08
09
10
11
def paintEvent(self, event):

        painter = QPainter(self)

        pic = QPixmap("Shape_1.png")

        painter.drawPixmap(self.rect(), pic)

        painter.setPen(QPen(Qt.red, 8))

        painter.drawRect(40, 40, 400, 200)

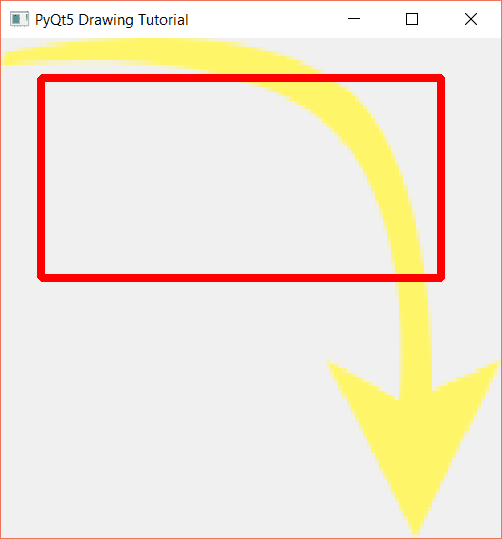

The output is as follows:

PyQt5 Drawing Tutorial

Drawing vector images is very simple in PyQt5. I hope you find the tutorial useful.

Thank you.

Published on Web Code Geeks with permission by Mokhtar Ebrahim, partner at our WCG program. See the original article here: PyQt5 Drawing Tutorial (Painting APIs)

Opinions expressed by Web Code Geeks contributors are their own.

(0 rating, 0 votes)
You need to be a registered member to rate this.
1 Comment Views Tweet it!
Do you want to know how to develop your skillset to become a Web Rockstar?
Subscribe to our newsletter to start Rocking right now!
To get you started we give you our best selling eBooks for FREE!
1. Building web apps with Node.js
2. HTML5 Programming Cookbook
3. CSS Programming Cookbook
4. AngularJS Programming Cookbook
5. jQuery Programming Cookbook
6. Bootstrap Programming Cookbook
and many more ....
I agree to the Terms and Privacy Policy

1
Leave a Reply

avatar
1 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
1 Comment authors
Bala Recent comment authors

This site uses Akismet to reduce spam. Learn how your comment data is processed.

  Subscribe
newest oldest most voted
Notify of
Bala
Guest
Bala

Very Good Article
