HTML5 Navigation Bar Example

In this article we will present you a way for creating an HTML5 navigation bar. We will only use CSS and no JavaScript. Let’s see how this can be done!

Want to be a HTML5 Ninja?

Subscribe to our newsletter and download the HTML5 Programming Cookbook right now!

In order to get you prepared for your HTML5 development needs, we have compiled numerous recipes to help you kick-start your projects. Besides reading them online you may download the eBook in PDF format!



1. The nav Tag

The <nav /> Tag is one of the new elements introduced in the HTML5 Specification, this element represents a part of your document that contains links to parts of the page or to other pages.

A section with navigation links.

If the navigation links is a list of links, simply use the <ul/> <li> tags to create the list, but as the specification say:

A nav element doesn’t have to contain a list, it can contain other kinds of content as well.

Let’s see an example.

1.1 Simple Navigation Example

<!DOCTYPE html>
<html>
<head lang="en">
    <meta charset="UTF-8">
    <title>HTML5 Navigation Bar Example - Example 1</title>
</head>
<body>
    <nav>
        <ul>
            <li><a href="home.html">Home</a></li>
            <li><a href="blog.html">Blog</a></li>
            <li><a href="news.html">News</a></li>
        </ul>
    </nav>
</body>
</html>

As you can see it looks like any other lists :

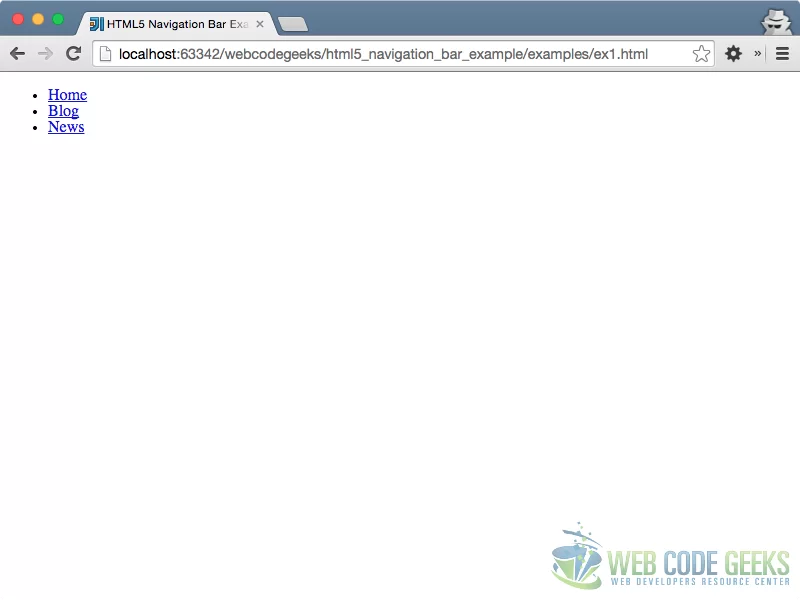

HTML 5 Navigation Bar Example 1

HTML 5 Navigation Bar Example 1

1.2 Adding some CSS

As we want to create a navigation bar we will add some CSS to the page to present the list as a navigation bar.

First of all we define the default body styling :

body{
    margin: 0;
    padding: 0;
    font-size: 15px;
}

Then we create the “navbar style” :

nav {
    background-color: #333;
    margin: 0;
    overflow: hidden;
}

And now we can add some style to the list element :

nav ul{
    margin: 0;
    padding: 0;
}
nav ul li {
    /* This allow us to arrange list items in a row, without using float */
    display: inline-block;
    list-style-type: none;
}

/* Create a style for the first level items */
nav > ul > li > a {
    color: #aaa;
    background-color:#FF0;
    display: block;
    line-height: 2em;
    padding: 0.5em 0.5em;
    text-decoration: none;
}

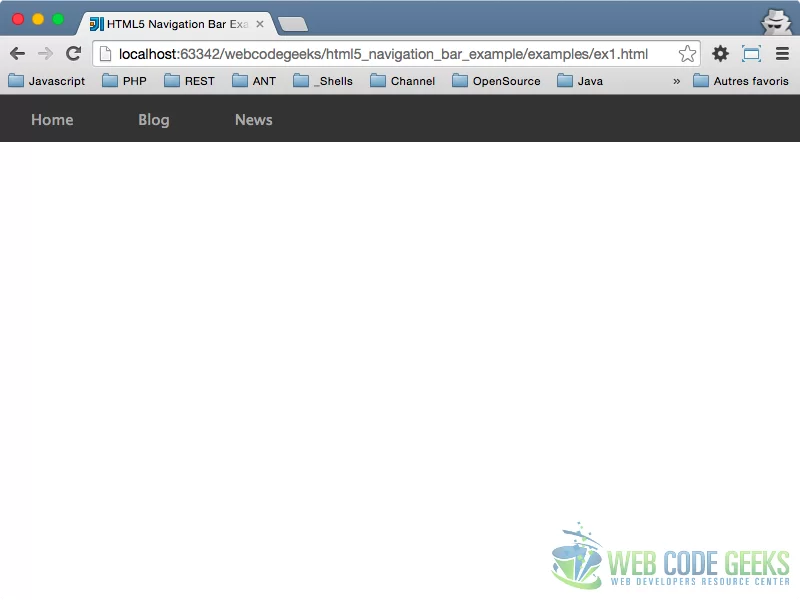

HTML5 Navigation Bar Example 1 bis

HTML5 Navigation Bar Example 1 bis

2. Adding sub level

Now we will add some sub menus to the navigation bar. Let’s see the HTML code :

<!DOCTYPE html>
<html>
<head lang="en">
    <meta charset="UTF-8">
    <title>HTML5 Navigation Bar Example - Example 1</title>
</head>
<body>
<nav>
    <ul>
        <li>
            <a href="home.html">Home</a>
            <ul>
                <li><a href="presentation.html">presentation</a></li>
                <li><a href="contact.html">contact</a></li>
            </ul>
        </li>
        <li><a href="blog.html">Blog</a></li>
        <li>
            <a href="shop.html">shop</a>
            <ul>
                <li><a href="candy.html">candy</a></li>
                <li><a href="chocolate.html">chocolate</a></li>
                <li><a href="icecream.html">ice cream</a></li>
            </ul>
        </li>
        <li><a href="news.html">News</a></li>
    </ul>
</nav>
</body>
</html>

If you try to display the navigation just now, this will not look as expected, we need to add some CSS to manage the submenus :

nav li > ul li{
    display: block;
}

nav  li > ul li a {
    color: #111;
    display: block;
    line-height: 2em;
    padding: 0.5em 2em;
    text-decoration: none;
}

/* Change the background color when mouse over items */
nav li:hover {
    background-color: #666;
}
/* display the submenu on mouse over main menu item*/
nav li:hover > ul{
    position:absolute;
    display : block;
}

The pseudo selector :hover allow us to display submenus when the mouse is hover the main menu item.

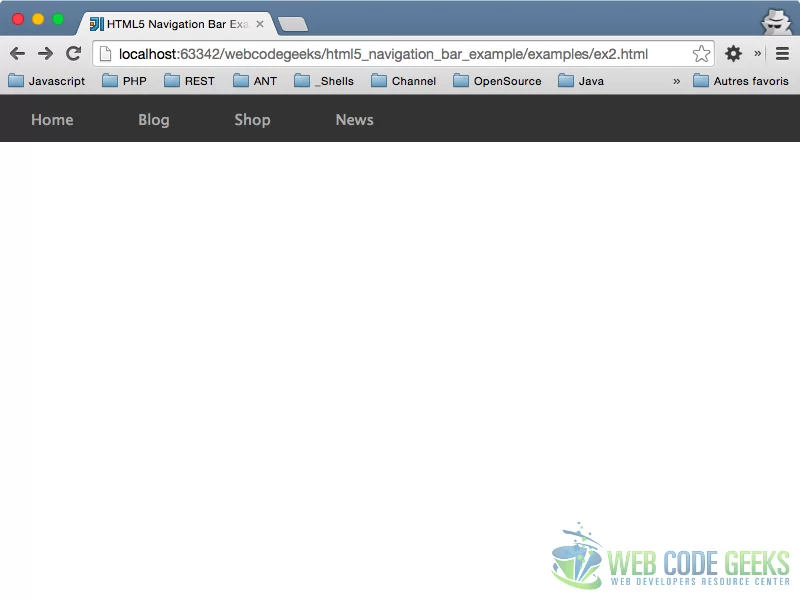

HTML 5 Navigation Bar Example 2

HTML 5 Navigation Bar Example 2

3. Third level menu

Imagine now you want to create a third level menu, and we want it to be shown on the right of menu item.

So we have to edit the HTML to add some submenu in one or more second level menu element…

<!DOCTYPE html>
<html>
<head lang="en">
    <meta charset="UTF-8">
    <title>HTML5 Navigation Bar Example - Example 1</title>
    <link href="style3.css" rel="stylesheet"/>
</head>
<body>
<nav>
    <ul>
        <li>
            <a href="home.html">Home</a>
            <ul>
                <li><a href="presentation.html">presentation</a></li>
                <li>
                    <a href="contact.html">contact</a>
                    <ul>
                        <li><a href="one.html">One</a></li>
                        <li><a href="two.html">Two</a></li>
                        <li><a href="three.html">Three</a></li>
                    </ul>
                </li>
            </ul>
        </li>
        <li>
            <a href="blog.html">Blog</a>
            <ul>
                <li><a href="one.html">One</a></li>
                <li><a href="two.html">Two</a></li>
                <li><a href="three.html">Three</a></li>
            </ul>
        </li>
        <li>
            <a href="shop.html">Shop</a>
            <ul>
                <li>
                    <a href="candy.html">candy</a>
                    <ul>
                        <li><a href="one.html">One</a></li>
                        <li><a href="two.html">Two</a></li>
                        <li><a href="three.html">Three</a></li>
                    </ul>
                </li>
                <li><a href="chocolate.html">chocolate</a></li>
                <li>
                    <a href="icecream.html">ice cream</a>
                    <ul>
                        <li><a href="one.html">One</a></li>
                        <li><a href="two.html">Two</a></li>
                        <li><a href="three.html">Three</a></li>
                    </ul>
                </li>
            </ul>
        </li>
        <li><a href="news.html">News</a></li>
    </ul>
</nav>
</body>
</html>

And we also have to edit the CSS by adding the following code:

nav li > ul > li ul  {
    display: none;
    background-color: #888;
}
nav li > ul > li:hover > ul  {
    position:absolute;
    display : block;
    margin-left:100%;
    margin-top:-3em;
}

This will create something like this …

HTML 5 Navigation Bar Example 3

HTML 5 Navigation Bar Example 3

Without any modification if you add some submenus (in the third level one) you will have something like this :

HTML 5 Navigation Bar Example 3 bis

HTML 5 Navigation Bar Example 3 bis

Ok, now I would like to add some little icons to elements that have sub elements.

4. Drop down icon

In order to add some arrows to menu item (they will inform the user that the element contains a submenu), we will add a class sub to all those elements.

<!DOCTYPE html>
<html>
<head lang="en">
    <meta charset="UTF-8">
    <title>HTML5 Navigation Bar Example - Example 1</title>
    <link href="style4.css" rel="stylesheet"/>
</head>
<body>
<nav>
    <ul>
        <li class="sub">
            <a href="home.html">Home</a>
            <ul>
                <li><a href="presentation.html">presentation</a></li>
                <li class="sub">
                    <a href="contact.html">contact</a>
                    <ul>
                        <li><a href="one.html">One</a></li>
                        <li><a href="two.html">Two</a></li>
                        <li class="sub">
                            <a href="three.html">Three</a>
                            <ul>
                                <li><a href="one.html">One</a></li>
                                <li><a href="two.html">Two</a></li>
                                <li><a href="three.html">Three</a></li>
                            </ul>
                        </li>
                    </ul>
                </li>
            </ul>
        </li>
        <li class="sub">
            <a href="blog.html">Blog</a>
            <ul>
                <li><a href="one.html">One</a></li>
                <li><a href="two.html">Two</a></li>
                <li><a href="three.html">Three</a></li>
            </ul>
        </li>
        <li class="sub">
            <a href="shop.html">Shop</a>
            <ul>
                <li class="sub">
                    <a href="candy.html">candy</a>
                    <ul>
                        <li><a href="one.html">One</a></li>
                        <li><a href="two.html">Two</a></li>
                        <li class="sub">
                            <a href="three.html">Three</a>
                            <ul>
                                <li><a href="one.html">One</a></li>
                                <li><a href="two.html">Two</a></li>
                                <li class="sub">
                                    <a href="three.html">Three</a>
                                    <ul>
                                        <li><a href="one.html">One</a></li>
                                        <li><a href="two.html">Two</a></li>
                                        <li><a href="three.html">Three</a></li>
                                    </ul>
                                </li>
                            </ul>
                        </li>
                    </ul>
                </li>
                <li><a href="chocolate.html">chocolate</a></li>
                <li class="sub">
                    <a href="icecream.html">ice cream</a>
                    <ul>
                        <li><a href="one.html">One</a></li>
                        <li><a href="two.html">Two</a></li>
                        <li><a href="three.html">Three</a></li>
                    </ul>
                </li>
            </ul>
        </li>
        <li><a href="news.html">News</a></li>
    </ul>
</nav>
</body>
</html>

And in the CSS, we will add only two directives :

nav ul > li.sub{
    background: url(ic_keyboard_arrow_down_white_18dp.png) right center no-repeat;
}

nav ul > li.sub li.sub{
    background: url(ic_keyboard_arrow_right_white_18dp.png) right center no-repeat;
}

Images are from the Google Design page.

This will create something like this :

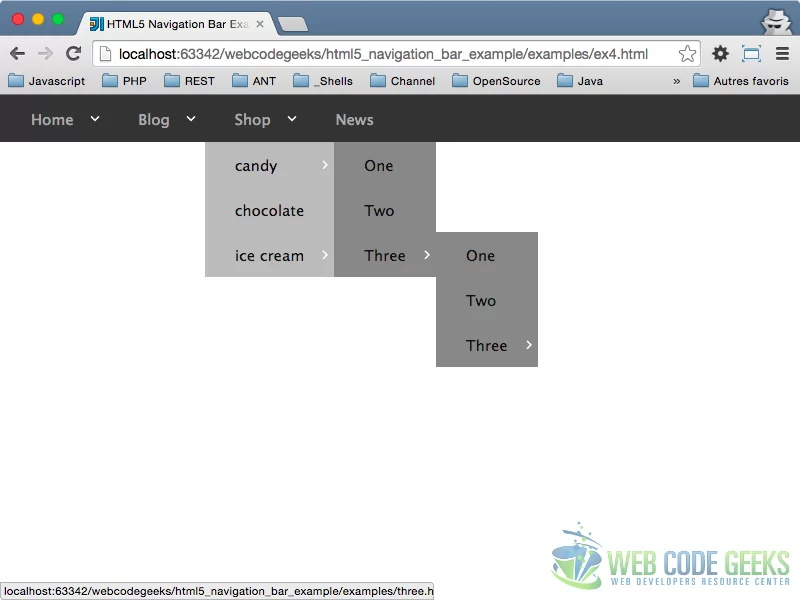

HTML 5 Navigation Bar Example 4

HTML 5 Navigation Bar Example 4

5. Download

Download
You can download the full source code of this example here: HTML5 Navigation Bar Example
